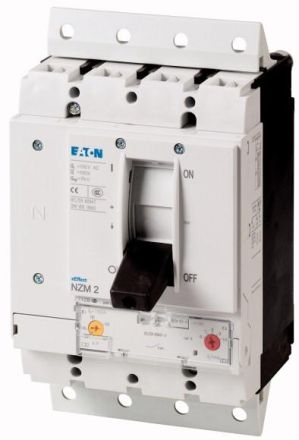

HABNZMN2-4-A250/160-SVE
HAN113273
GTIN4015081128082
Connection type main circuitScrew connection
Design of the actuating elementRocker arm
Rated continuous current Iu250A
Rated ultimate short-circuit breaking current Icu at 400 V, 50 Hz50kA
Rated voltage690V
Setting range of the instantaneous short-circuit release6 to 10 A
Suitable for DIN rail mountingNo
Device typeBuilt-in device plug-in technology
DIN rail mounting optionalYes
Integrated earth fault protectionNo
Complete device with protection unitYes
With trip detectorNo
Motor drive integratedNo
Motor drive optionalYes
Number of poles4
Position of the connection for main circuitIn front
IP protection)IP20
Overload release current setting200 to 250 A
