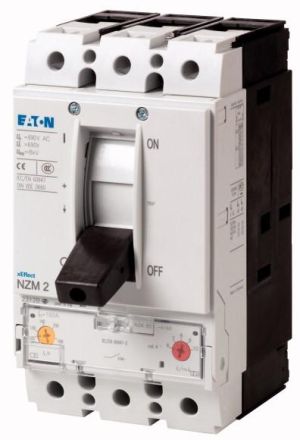

Eaton NZMN2-A40-NA circuit breaker, 3p, 40A , 269220

Eaton NZMN2-A40-NA circuit breaker, 3p, 40A , 269220

In stock

SKU: 224010

Price on request

€480.18

€0

Overview

Circuit breaker NZM2, 3-pole, Switching capacity SCCR 600Y/347 V 60 Hz(Icu): 25 kA, Switching capacity SCCR 480 V 60 Hz(Icu): 35 kA, Rated current = rated continuous current Rated current = rated continuous current(In = Iu): 40 A, Installation technology: fixed installation, Standard equipment: screw connection, Standard/approval: UL/CSA, IEC, Protective function: system and cable protection

Property	Value
Rated continuous current Iu:	40 A
Connection type main circuit:	Screw connection
Number of poles:	3
Device design:	Built-in device, fixed installation technology
Position of connection for main circuit:	front
Protection class (IP):	IP20
Overload release current setting:	32 to 40 A
Setting range of the instantaneous short-circuit release:	320 to 400 A
Rated voltage:	690 V
Rated short-circuit breaking current Icu at 400 V, 50 Hz:	50 kA
Suitable for DIN rail mounting:	no
Design of the actuating element:	toggle lever
Integrated earth fault protection:	no
Motor drive integrated:	no
Motor drive optional:	yes
With trip detector:	no
Complete device with protection unit:	yes
DIN rail mounting optional:	yes
