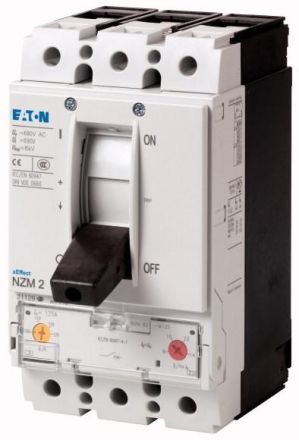

Eaton NZMN2-M125 circuit breaker, 3p, 125A , 265723

Eaton NZMN2-M125 circuit breaker, 3p, 125A , 265723

In stock

SKU: 224057

Price on request

€670.55

€0

Overview

The circuit breakers of the NZM..-M series cover all applications with only four compact sizes and are suitable for the IEC market. Installation is always flexible thanks to modular function groups. With thermomagnetic release for motor protection. Notes: tripping class 10A, IEC/EN 60947-4-1, IEC/EN 60947-2, circuit breakers meet all requirements of the AC-3 usage category.

Property	Value
Number of poles:	3
Rated operating voltage:	690 V
Rated operating power at AC-3, 230 V:	37 kW
Rated operating power at AC-3, 400 V:	55 kW
Rated continuous current Iu:	125 A
Rated ultimate short-circuit breaking current Icu at 400 V, AC:	35 kA
Overload release current setting:	100 to 125 A
Triggering technology:	thermomagnetic
Phase failure sensitive:	no
Main circuit connection type:	screw connection
Device design:	Built-in device, fixed installation technology
Protection class (IP):	IP20
Width:	105 mm
Setting range of the instantaneous short-circuit release:	1000 to 1750 A
With integrated auxiliary switch:	no
With integrated undervoltage release:	no
Height:	184 mm
Depth:	149 mm
Type of operating element:	Toggle lever
With thermal protection:	yes
