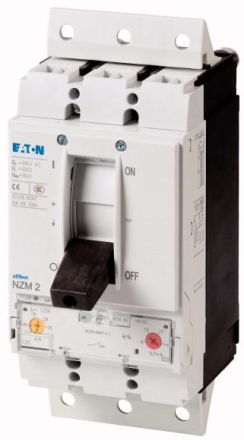

Eaton NZMN2-M125-SVE circuit breaker, 3p, 125A, plug-in insert, 113250

In stock
SKU: 224058
€756.77
Into a basketIn the basketGo

Overview

The circuit breakers of the NZM..-M series cover all applications with only four compact sizes and are suitable for the IEC market. Installation is always flexible thanks to modular function groups. With thermomagnetic release for motor protection. Notes: tripping class 10A, IEC/EN 60947-4-1, IEC/EN 60947-2, circuit breakers meet all requirements of the AC-3 usage category.

PropertyValue
Number of poles:3
Rated operating voltage:690 V
Rated operating power at AC-3, 230 V:37 kW
Rated operating power at AC-3, 400 V:55 kW
Rated continuous current Iu:125 A
Rated ultimate short-circuit breaking current Icu at 400 V, AC:35 kA
Overload release current setting:100 to 125 A
Triggering technology:thermomagnetic
Phase failure sensitive:no
Main circuit connection type:screw connection
Device design:Built-in device, plug-in technology
Protection class (IP):IP20
Width:105 mm
Setting range of the instantaneous short-circuit release:1000 to 1750 A
With integrated auxiliary switch:no
With integrated undervoltage release:no
Height:245 mm
Depth:180 mm
Design of the actuating element:toggle lever
With thermal protection:yes

Characteristics

HABNZMN2-M125-SVE
ManufacturerEaton
HAN113250
GTIN4015081127856
Connection type main circuitScrew connection
Design of the actuating elementRocker arm
Triggering technologyThermomagnetic
Rated operating power at AC-3, 230 V37kW
Rated operational power at AC-3, 400 V55kW
Rated operating voltage690V
Rated continuous current Iu125A
Rated ultimate short-circuit breaking current Icu at 400 V, AC35kA
Width105 mm
Setting range of the instantaneous short-circuit release1000 to 1750 A
Device typeBuilt-in device plug-in technology
Height245 mm
With integrated auxiliary switchNo
With integrated undervoltage releaseNo
With thermal protectionYes
Sensitive to phase failureNo
Number of poles3
IP protection)IP20
Depth180 mm
Overload release current setting100 to 125 A
