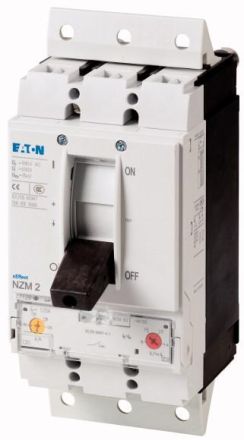

Eaton NZMN2-M200-SVE circuit breaker, 3p, 200A, plug-in insert, 113252

Eaton NZMN2-M200-SVE circuit breaker, 3p, 200A, plug-in insert, 113252

In stock

SKU: 224062

Price on request

€1,035.94

€0

Overview

The circuit breakers of the NZM..-M series cover all applications with only four compact sizes and are suitable for the IEC market. Installation is always flexible thanks to modular function groups. With thermomagnetic release for motor protection. Notes: tripping class 10A, IEC/EN 60947-4-1, IEC/EN 60947-2, circuit breakers meet all requirements of the AC-3 usage category.

Property	Value
Number of poles:	3
Rated operating voltage:	690 V
Rated operating power at AC-3, 230 V:	55 kW
Rated operating power at AC-3, 400 V:	110 kW
Rated continuous current Iu:	200 A
Rated ultimate short-circuit breaking current Icu at 400 V, AC:	35 kA
Overload release current setting:	160 to 200 A
Triggering technology:	thermomagnetic
Phase failure sensitive:	no
Main circuit connection type:	screw connection
Device design:	Built-in device plug-in technology
Protection class (IP):	IP20
Width:	105 mm
Setting range of the instantaneous short-circuit release:	1600 to 2800 A
With integrated auxiliary switch:	no
With integrated undervoltage release:	no
Height:	245 mm
Depth:	180 mm
Design of the actuating element:	toggle lever
With thermal protection:	yes
