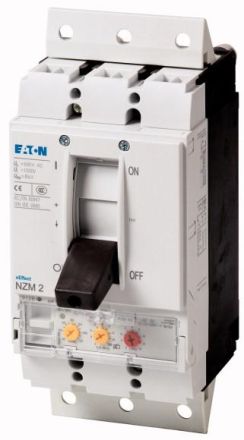

Eaton NZMN2-ME140-SVE circuit breaker, 3p, 140A, plug-in insert, 113257

Eaton NZMN2-ME140-SVE circuit breaker, 3p, 140A, plug-in insert, 113257

In stock

SKU: 224066

Price on request

€1,214.39

€0

Overview

The circuit breakers of the NZM..-ME series cover all applications with only four compact sizes and are suitable for the IEC market. Installation is always flexible thanks to modular function groups. With electronic release for motor protection with phase failure sensitivity. Notes: IEC/EN 60947-4-1, IEC/EN 60947-2, RMS measurement and thermal memory, adjustable inertia setting tr: 2-20s at 6xIr and infinite (without overload release)

Property	Value
Number of poles:	3
Rated operating voltage:	690 V
Rated operating power at AC-3, 230 V:	45 kW
Rated operating power at AC-3, 400 V:	75 kW
Rated continuous current Iu:	140 A
Rated ultimate short-circuit breaking current Icu at 400 V, AC:	35 kA
Overload release current setting:	70 to 140 A
Triggering technology:	electronic
Phase failure sensitive:	yes
Connection type main circuit:	screw connection
Device design:	Built-in device plug-in technology
Protection class (IP):	IP20
Width:	105 mm
Setting range of the instantaneous short-circuit release:	140 to 1960 A
With integrated auxiliary switch:	no
With integrated undervoltage release:	no
Height:	245 mm
Depth:	180 mm
Design of the actuating element:	toggle lever
With thermal protection:	yes
