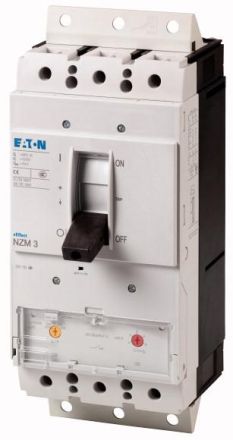

Eaton NZMN3-A500-SVE circuit breaker, 3p, 500A, plug-in insert, 168488

Eaton NZMN3-A500-SVE circuit breaker, 3p, 500A, plug-in insert, 168488

In stock

SKU: 224192

Price on request

€2,028.11

€0

Into a basketIn the basketGo

Overview

The NZM series circuit breakers cover all applications with just four compact sizes and are suitable for the IEC market. Installation is always flexible thanks to modular function groups.

Property	Value
Rated continuous current Iu:	500 A
Connection type main circuit:	Screw connection
Number of poles:	3
Device design:	Built-in device plug-in technology
Position of connection for main circuit:	front
Protection class (IP):	IP20
Overload release current setting:	400 to 500 A
Setting range of the instantaneous short-circuit release:	3000 to 5000 A
Rated voltage:	690 V
Rated short-circuit breaking current Icu at 400 V, 50 Hz:	50 kA
Suitable for DIN rail mounting:	no
Design of the actuating element:	toggle lever
Integrated earth fault protection:	no
Motor drive integrated:	no
Motor drive optional:	yes
With trip detector:	no
Complete device with protection unit:	yes
DIN rail mounting optional:	no

Characteristics

HABNZMN3-A500-SVE

Manufacturer

HAN168488

GTIN4015081649686

Connection type main circuitScrew connection

Design of the actuating elementRocker arm

Rated continuous current Iu500A

Rated ultimate short-circuit breaking current Icu at 400 V, 50 Hz50kA

Rated voltage690V

Setting range of the instantaneous short-circuit release3000 to 5000 A

Suitable for DIN rail mountingNo

Device typeBuilt-in device plug-in technology

DIN rail mounting optionalNo

Integrated earth fault protectionNo

Complete device with protection unitYes

With trip detectorNo

Motor drive integratedNo

Motor drive optionalYes

Number of poles3

Position of the connection for main circuitIn front

IP protection)IP20

Overload release current setting400 to 500 A
