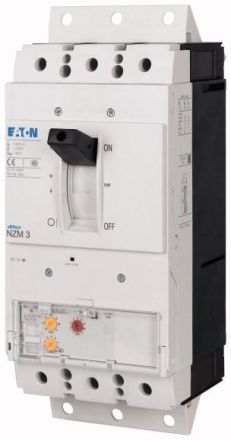

Eaton NZMN3-ME350-SVE circuit breaker, 3p, 350A, plug-in insert, 168484

Eaton NZMN3-ME350-SVE circuit breaker, 3p, 350A, plug-in insert, 168484

In stock

SKU: 224223

Price on request

€2,091.77

€0

Overview

The circuit breakers of the NZM..-ME series cover all applications with only four compact sizes and are suitable for the IEC market. Installation is always flexible thanks to modular function groups. With electronic release for motor protection with phase failure sensitivity. Notes: IEC/EN 60947-4-1, IEC/EN 60947-2, RMS measurement and thermal memory, adjustable inertia setting tr: 2-20s at 6xIr and infinite (without overload release)

Property	Value
Number of poles:	3
Rated operating voltage:	690 V
Rated operating power at AC-3, 230 V:	110 kW
Rated operating power at AC-3, 400 V:	200 kW
Rated continuous current Iu:	350 A
Rated ultimate short-circuit breaking current Icu at 400 V, AC:	35 kA
Overload release current setting:	175 to 350 A
Triggering technology:	electronic
Phase failure sensitive:	yes
Connection type main circuit:	screw connection
Device design:	Built-in device plug-in technology
Protection class (IP):	IP20
Width:	140 mm
Setting range of the instantaneous short-circuit release:	700 to 4900 A
With integrated auxiliary switch:	no
With integrated undervoltage release:	no
Height:	215.2 mm
Depth:	335 mm
Type of operating element:	Toggle lever
With thermal protection:	yes
