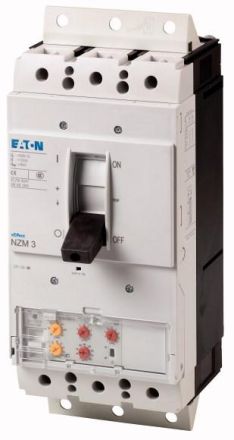

Eaton NZMN3-VE400-SVE circuit breaker, 3p, 400A, plug-in insert, 168481

Eaton NZMN3-VE400-SVE circuit breaker, 3p, 400A, plug-in insert, 168481

In stock

SKU: 224252

Price on request

€2,023.78

€0

Overview

The circuit breakers of the NZM..-VE series cover all applications with just four compact sizes and are suitable for the IEC market. Installation is always flexible thanks to modular function groups. With electronic release for system and cable protection, selective and generator protection. Overload, short-time delayed and undelayed short-circuit protection. Notes: RMS measurement and thermal memory, adjustable inertia setting tr: 2-14 s at 6xIr and infinite (without overload release), adjustable delay time tsd: levels: 0, 20, 60, 100, 200, 300, 500, 750, 1000ms, i2t constant function: switchable

Property	Value
Rated continuous current Iu:	400 A
Connection type main circuit:	Screw connection
Number of poles:	3
Device design:	Built-in device plug-in technology
Position of connection for main circuit:	front
Protection class (IP):	IP20
Overload release current setting:	200 to 400 A
Setting range of the short-time delayed short-circuit release:	400 to 4000 A
Setting range of the instantaneous short-circuit release:	800 to 4400 A
Rated voltage:	690 V
Rated short-circuit breaking current Icu at 400 V, 50 Hz:	50 kA
Suitable for DIN rail mounting:	no
Design of the actuating element:	toggle lever
Integrated earth fault protection:	no
Motor drive integrated:	no
Motor drive optional:	yes
With Trigger detector:	no
Complete device with protection unit:	yes
DIN rail mounting optional:	no
