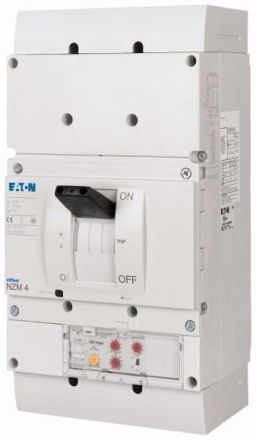

Eaton NZMN4-VEF800-NA circuit breaker, 3p, 800A , 271138

Eaton NZMN4-VEF800-NA circuit breaker, 3p, 800A , 271138

In stock

SKU: 224315

Price on request

€4,016.54

€0

Overview

Circuit breaker NZM4, 3-pole, switching capacity SCCR 480 V 60 Hz (Icu): 42 kA, switching capacity SCCR 600 V 60 Hz (Icu): 35 kA, rated current = rated continuous current Rated current = rated continuous current (In = Iu): 800 A, installation technology: fixed installation, screw connection, standard/approval: UL/CSA, IEC, protective function: system, cable, selective and generator protection

Property	Value
Rated continuous current Iu:	800 A
Connection type main circuit:	Screw connection
Number of poles:	3
Device design:	Built-in device, fixed installation technology
Position of connection for main circuit:	front
Protection class (IP):	IP20
Overload release current setting:	800 A
Setting range of the short-time delayed short-circuit release:	1600 to 8000 A
Setting range of the instantaneous short-circuit release:	1600 to 8000 A
Rated voltage:	690 V
Rated short-circuit breaking current Icu at 400 V, 50 Hz:	37 kA
Suitable for DIN rail mounting:	no
Design of the actuating element:	toggle lever
Integrated earth fault protection:	no
Motor drive integrated:	no
Motor drive optional:	yes
With Trigger detector:	no
Complete device with protection unit:	yes
DIN rail mounting optional:	no
