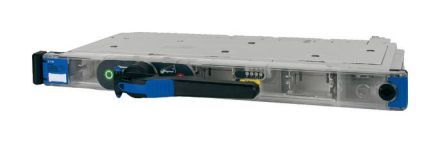

Eaton PIFT2H311C401MM 3-pole NH2 AC23 fuse switch disconnector, 160898

In stock

SKU: 478090

Price on request

€767.72

€0

Overview

Fuse switch disconnector, design: base strip, 1 transformer, class 1, current transformer (primary current): 400A, current transformer (secondary current): 1A, transformer wiring (with transformer) on measuring device, prepared for a measuring device

Property	Value
Rated continuous current Iu:	400 A
Protection class (IP), front:	IP40
Number of poles:	3
Design as main switch:	no
Design of the actuating element:	long rotary handle
Connection type main circuit:	clamping bracket
Suitable for front mounting:	yes
Suitable for floor mounting:	no
With fuse monitoring:	no
Version as EMERGENCY STOP device:	no
Conditional rated short-circuit current Iq:	100 kA
Version as safety switch:	no
Max. Rated operating voltage Ue at AC:	690 V
Suitable for busbar construction:	yes
Suitable for fuse links:	NH2
Position of the actuating element:	front
Motor drive integrated:	no
Motor drive optional:	yes
Cable entry:	side
Equipped with connectors:	yes
