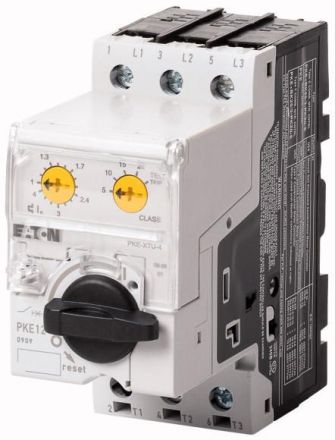

Eaton PKE12/XTU-4 1-4A motor protection switch, 121732

Eaton PKE12/XTU-4 1-4A motor protection switch, 121732

In stock

SKU: 474346

Price on request

€114.71

€0

Overview

Motor protection switch complete device (basic device and electronic trip unit) according to IEC60947-4-1, electronic wide-range overload protection (4:1), phase failure and asymmetry protection, adjustable trip class, high short-circuit breaking capacity, isolator function. Flexible adjustment of the current range through exchangeable electronic trip units. Can be expanded with auxiliary switch, voltage release, current limiter, door coupling handles. World market device, ATEX approval

Property	Value
Number of poles:	3
Rated operating voltage:	690 V
Rated operating power at AC-3, 230 V:	0.75 kW
Rated operating power at AC-3, 400 V:	1.5 kW
Rated continuous current Iu:	4 A
Rated ultimate short-circuit breaking current Icu at 400 V, AC:	100 kA
Overload release current setting:	1 to 4 A
Triggering technology:	electronic
Phase failure sensitive:	yes
Connection type main circuit:	screw connection
Device design:	Built-in device, fixed installation technology
Protection class (IP):	IP20
Width:	45 mm
Setting range of the instantaneous short-circuit release:	62 A
With integrated auxiliary switch:	no
With integrated undervoltage release:	no
Height:	102.5 mm
Depth:	101 mm
Design of the operating element:	Rotary knob
With thermal protection:	no
