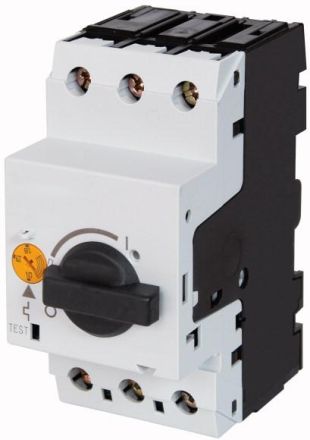

Eaton PKM0-0.16 short-circuit circuit breaker, 3-pole, Im = 2.2 A, 072720

In stock

SKU: 224810

Price on request

€59.65

€0

Overview

Motor protection switch according to IEC/EN60947, 3-pole, size PKM0, with instantaneous short-circuit release, screw and snap-on mounting, with screw terminals, cap installation dimension 45mm, rated operating voltage Ue 690V, protection class IP20, finger-safe according to 0106 T. 100, available accessories: auxiliary switch, voltage release, switching drive, clip plate

Property	Value
Number of poles:	3
Rated operating voltage:	690 V
Rated continuous current Iu:	0.16 A
Rated short-circuit breaking current Icu at 400 V, AC:	150 kA
Triggering technology:	magnetic
Phase failure sensitive:	no
Connection type main circuit:	screw connection
Device design:	Built-in device, fixed installation technology
Degree of protection (IP):	IP20
Width:	45 mm
Setting range of the instantaneous short-circuit release:	2.5 A
With integrated auxiliary switch:	no
With integrated undervoltage release:	no
Height:	93 mm
Depth:	76 mm
Design of the actuating element:	Rotary knob
With thermal protection:	no
