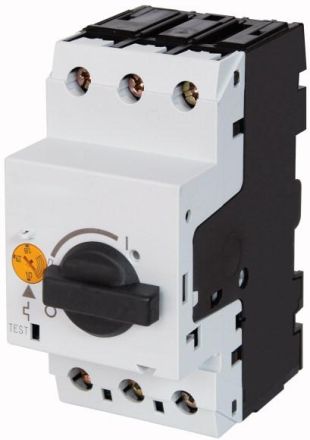

Eaton PKM0-20 short-circuit circuit breaker, 3-pole, Im = 280 A , 203594

Eaton PKM0-20 short-circuit circuit breaker, 3-pole, Im = 280 A , 203594

In stock

SKU: 224820

Price on request

€87.30

€0

Overview

Motor protection switch according to IEC/EN60947, 3-pole, size PKM0, with instantaneous short-circuit release, screw and snap-on mounting, with screw terminals, cap installation dimension 45mm, rated operating voltage Ue 690V, protection class IP20, finger-safe according to 0106 T. 100, available accessories: auxiliary switch, voltage release, switching drive, clip plate

Property	Value
Number of poles:	3
Rated operating voltage:	690 V
Rated operating power at AC-3, 230 V:	5.5 kW
Rated operating power at AC-3, 400 V:	9 kW
Rated continuous current Iu:	20 A
Rated ultimate short-circuit breaking current Icu at 400 V, AC:	50 kA
Tripping technology:	magnetic
Phase failure sensitive:	no
Connection type main circuit:	Screw connection
Device design:	Built-in device, fixed installation technology
Protection class (IP):	IP20
Width:	45 mm
Setting range of the instantaneous short-circuit release:	310 A
With integrated auxiliary switch:	no
With integrated undervoltage release:	no
Height:	93 mm
Depth:	76 mm
Design of the Actuator:	Rotary knob
With thermal protection:	no
