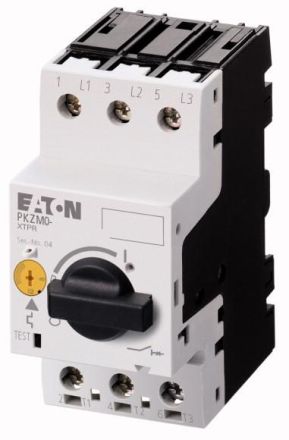

Eaton PKZM0-1,6-T TRANSFORMER CIRCUIT BREAKER, 088912

In stock

SKU: 224877

Price on request

€74.65

€0

Overview

Transformer circuit breaker according to IEC/EN60947, 3-pole, size PKZM0, with adjustable overload and instantaneous short-circuit release, phase failure sensitive, screw and snap-on mounting, with screw terminals, cap installation dimension 45mm, rated operating voltage Ue 690V, protection class IP20, finger-safe according to 0106 T. 100, available accessories: auxiliary switch, voltage release

Property	Value
Rated continuous current Iu:	1.6 A
Connection type main circuit:	Screw connection
Number of poles:	3
Device design:	Built-in device, fixed installation technology
Position of connection for main circuit:	other
Protection class (IP):	IP20
Overload release current setting:	1 to 1.6 A
Setting range of the instantaneous short-circuit release:	32 A
Rated voltage:	690 V
Rated short-circuit breaking current Icu at 400 V, 50 Hz:	150 kA
Suitable for DIN rail mounting:	yes
Design of the actuating element:	Rotary knob
Integrated earth fault protection:	no
Motor drive integrated:	no
Motor drive optional:	no
With trip detector:	yes
Complete device with protection unit:	yes
DIN rail mounting optional:	yes
