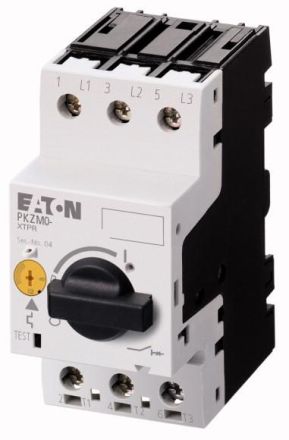

Eaton PKZM0-1 motor protection switch, 3-pole, Ir = 0.63 - 1 A, screw connection, 072734

Eaton PKZM0-1 motor protection switch, 3-pole, Ir = 0.63 - 1 A, screw connection, 072734

In stock

SKU: 224864

Price on request

€54.97

€0

Overview

Motor protection switch according to IEC/EN60947, 3-pole, size PKZM0, with adjustable overload and instantaneous short-circuit release, sensitive to phase failure, screw and snap-on mounting, with screw terminals, cap installation dimension 45mm, rated operating voltage Ue 690V, protection class IP20, finger-safe according to 0106 T. 100, available accessories: auxiliary switch, voltage release, switching drive, clip plate

Property	Value
Number of poles:	3
Rated operating voltage:	690 V
Rated operating power at AC-3, 230 V:	0.12 kW
Rated operating power at AC-3, 400 V:	0.25 kW
Rated continuous current Iu:	1 A
Rated ultimate short-circuit breaking current Icu at 400 V, AC:	150 kA
Overload release current setting:	0.63 to 1 A
Triggering technology:	thermomagnetic
Phase failure sensitive:	yes
Connection type main circuit:	screw connection
Device design:	Built-in device, fixed installation technology
Protection class (IP):	IP20
Width:	45 mm
Setting range of the instantaneous short-circuit release:	15.5 A
With integrated auxiliary switch:	no
With integrated undervoltage release:	no
Height:	93 mm
Depth:	76 mm
Design of the operating element:	Rotary knob
With thermal protection:	no
