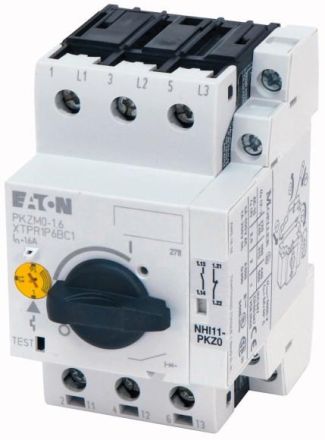

Eaton PKZM0-16/NHI11-GVP motor protection switch, 39433

In stock
SKU: 224927
€113
Into a basketIn the basketGo

Overview

Motor protection switch, 3-pole + 1 NO + 1 NC, Ir = 10 - 16 A, screw connection, bulk pack

Eaton Type: PKZM0-16/NHI11-GVP
Eaton Article No.: 039433

PropertyValue
Number of poles:3
Rated operating voltage:690 V
Rated operating power at AC-3, 230 V:4 kW
Overload release current setting:16 A
Rated operating power at AC-3, 400 V:7.5 kW
Rated continuous current Iu:16 A
Tripping technology:thermomagnetic
Phase failure sensitive:yes
Connection type Main circuit:Screw connection
Device design:Built-in device, fixed installation technology
Setting range of the instantaneous short-circuit release:248 A
Rated short-circuit breaking current Icu at 400 V, AC:50 kA
With integrated auxiliary switch:yes
With integrated undervoltage release:no
Protection class (IP) :IP20
Width:54 mm
Height:93 mm
Depth:76 mm
Design of the operating element:Rotary knob
With thermal protection:yes

Characteristics

HABPKZM0-16/NHI11-GVP
Minimal order32 Pieces
ManufacturerEaton
HAN39433
GTIN4015080394334
Connection type main circuitScrew connection
Design of the actuating elementRotary knob
Triggering technologyThermomagnetic
Rated operating power at AC-3, 230 V4kW
Rated operational power at AC-3, 400 V7.5kW
Rated operating voltage690V
Rated continuous current Iu16A
Rated ultimate short-circuit breaking current Icu at 400 V, AC50kA
Width54 mm
Setting range of the instantaneous short-circuit release248 A
Device typeBuilt-in device Fixed installation technology
Height93 mm
With integrated auxiliary switchYes
With integrated undervoltage releaseNo
With thermal protectionYes
Sensitive to phase failureYes
Number of poles3
Depth76 mm
Overload release current setting16A
Eaton PKZM0-16/NHI11-GVP motor protection switch, 39433
