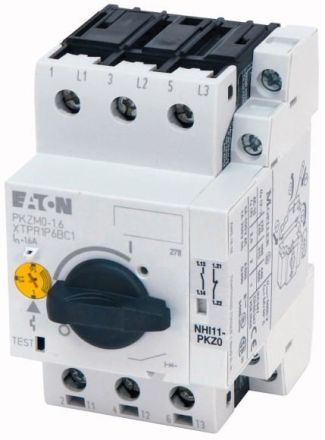

HABPKZM0-2.5/NHI11
HAN039427
GTIN4015080394273
Connection type main circuitScrew connection
Design of the actuating elementRotary knob
Triggering technologyThermomagnetic
Rated operating power at AC-3, 230 V0.37kW
Rated operational power at AC-3, 400 V0.75kW
Rated operating voltage690V
Rated continuous current Iu2.5A
Rated ultimate short-circuit breaking current Icu at 400 V, AC150kA
Width54 mm
Setting range of the instantaneous short-circuit release39 A
Device typeBuilt-in device Fixed installation technology
Height93 mm
With integrated auxiliary switchYes
With integrated undervoltage releaseNo
With thermal protectionNo
Sensitive to phase failureYes
Number of poles3
IP protection)IP20
Depth76 mm
Overload release current setting1.6 to 2.5A
