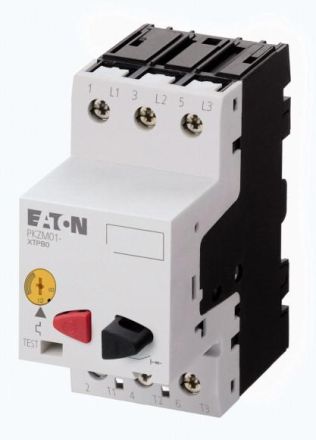

Eaton PKZM01-6.3 motor protection switch, 3-pole, Ir = 4 - 6.3 A, 278483

Eaton PKZM01-6.3 motor protection switch, 3-pole, Ir = 4 - 6.3 A, 278483

In stock

SKU: 224923

Price on request

€69.33

€0

Overview

Motor protection switch according to IEC/EN60947, 3-pole, size PKZM01, with adjustable overload and instantaneous short-circuit release, phase failure sensitive, screw and snap-on mounting, cap installation dimension 45mm, rated operating voltage Ue 690V, protection class IP20, finger-safe according to 0106 T. 100, available accessories: auxiliary switch, voltage release

Property	Value
Number of poles:	3
Rated operating voltage:	690 V
Rated operating power at AC-3, 230 V:	1.1 kW
Rated operating power at AC-3, 400 V:	2.2 kW
Rated continuous current Iu:	6.3 A
Rated ultimate short-circuit breaking current Icu at 400 V, AC:	50 kA
Overload release current setting:	4 to 6.3 A
Triggering technology:	thermomagnetic
Phase failure sensitive:	yes
Connection type main circuit:	screw connection
Device design:	Built-in device, fixed installation technology
Protection class (IP):	IP20
Width:	45 mm
Setting range of the instantaneous short-circuit release:	98 A
With integrated auxiliary switch:	no
With integrated undervoltage release:	no
Height:	90 mm
Depth:	93 mm
Design of the actuating element:	Push button
With thermal protection:	no
