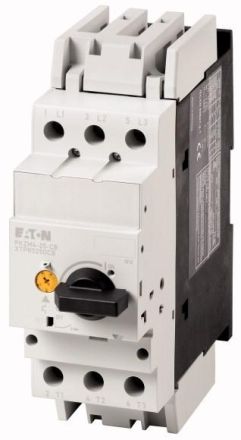

HABPKZM4-25-CB
HAN132592
GTIN4015081295272
Connection type main circuitScrew connection
Design of the actuating elementRotary knob
Rated continuous current Iu25A
Rated ultimate short-circuit breaking current Icu at 400 V, 50 Hz65kA
Rated voltage600 to 690 V
Setting range of the instantaneous short-circuit release0 to 350 A
Suitable for DIN rail mountingYes
Device typeBuilt-in device Fixed installation technology
DIN rail mounting optionalYes
Integrated earth fault protectionNo
Complete device with protection unitYes
With trip detectorNo
Motor drive integratedNo
Motor drive optionalNo
Number of poles3
Position of the connection for main circuitOther
IP protection)IP20
Overload release current setting0 to 25 A
