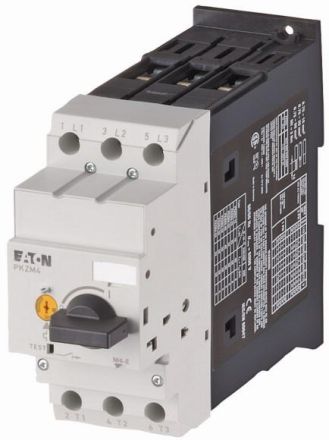

Eaton PKZM4-58 motor protection switch, 3-pole, Ir = 50-58 A, screw connection, 222394

Eaton PKZM4-58 motor protection switch, 3-pole, Ir = 50-58 A, screw connection, 222394

In stock

SKU: 225026

Price on request

€256.99

€0

Overview

Motor protection switch according to IEC/EN60947, 3-pole, size PKZM4, with adjustable overload and instantaneous short-circuit release, sensitive to phase failure, screw and snap-on mounting, rated operating voltage Ue 690V, protection class IP20, finger-safe according to 0106 T. 100, available accessories: auxiliary switch, voltage release

Property	Value
Number of poles:	3
Rated operating voltage:	690 V
Rated operating power at AC-3, 230 V:	17 kW
Rated operating power at AC-3, 400 V:	30 kW
Rated continuous current Iu:	58 A
Rated ultimate short-circuit breaking current Icu at 400 V, AC:	50 kA
Overload release current setting:	50 to 58 A
Triggering technology:	thermomagnetic
Phase failure sensitive:	yes
Connection type main circuit:	screw connection
Device design:	Built-in device, fixed installation technology
Protection class (IP):	IP20
Width:	55 mm
Setting range of the instantaneous short-circuit release:	899 A
With integrated auxiliary switch:	no
With integrated undervoltage release:	no
Height:	140 mm
Depth:	160 mm
Design of the operating element:	Rotary knob
With thermal protection:	no
