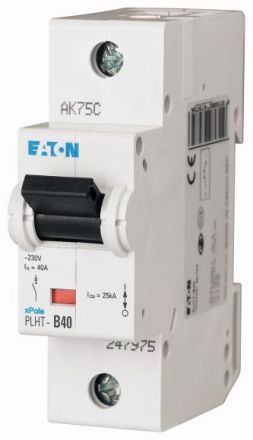

Eaton PLHT-B40 circuit breaker, 40A, 1p, B-Char , 247975

Eaton PLHT-B40 circuit breaker, 40A, 1p, B-Char , 247975

In stock

SKU: 218074

Price on request

€90.23

€0

Overview

Miniature circuit breaker PLHT, 1-pole, tripping characteristic: B, rated current In: 40 A, rated switching capacity according to IEC/EN 60898-1:, switching devices for industrial applications and high-end commercial buildings

Property	Value
Tripping characteristic:	B
Rated current:	40 A
Rated voltage:	400 V
Type of voltage:	AC
Frequency:	50 to 60 Hz
Width in pitch units:	1.5
Number of poles (total):	1
Energy limitation class:	3
Additional equipment possible:	yes
Overvoltage category:	3
Installation depth:	75 mm
Protection class (IP):	IP20
Rated switching capacity Icu according to IEC 60947-2 at 230 V:	25 kA
Rated switching capacity Icu according to IEC 60947-2 at 400 V:	25 kA
Pollution degree:	2
Switching neutral conductor:	no
Number of protected poles:	1
Rated insulation voltage Ui:	440 V
Rated impulse withstand voltage Uimp:	4 kV
Ambient temperature during operation:	-25 to 55 °C
Connectable conductor cross-section, stranded:	2.5 to 50 mm²
Connectable conductor cross-section, solid:	2.5 to 50 mm²
