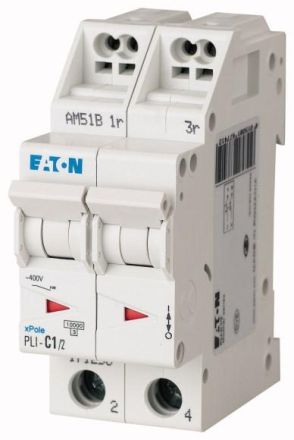

Eaton PLI-C1/2 circuit breaker, 1A, 2p, C-Char , 171256

Eaton PLI-C1/2 circuit breaker, 1A, 2p, C-Char , 171256

In stock

SKU: 218240

Price on request

€66.83

€0

Into a basketIn the basketGo

Overview

LS switch, 1A, 2p, C-Char

Eaton Type: PLI-C1/2
Eaton Article No.: 171256

Property	Value
Tripping characteristic:	C
Rated current:	1 A
Rated voltage:	400 V
Type of voltage:	AC
Frequency:	50 to 60 Hz
TE:	2
Number of poles (total):	2
Energy limitation class:	3
Additional equipment possible:	yes
Overvoltage category:	3
Installation depth:	70.5 mm
Protection class (IP):	IP20
Rated switching capacity Icn according to EN 60898 at 230 V:	10 kA
Rated switching capacity Icn according to EN 60898 at 400 V:	10 kA
Pollution degree:	2
Switching neutral conductor:	no
Number of protected Poles:	2
Flush-mounted installation:	no
Rated insulation voltage Ui:	440 V
Rated impulse withstand voltage Uimp:	4 kV
Ambient temperature during operation:	-25 to 75 °C
Connectable conductor cross-section, stranded:	1 to 25 mm²
Connectable conductor cross-section, single-wire:	1 to 25 mm²
Explosion-proof:	no

Characteristics

Flush-mounted installationNo

HABPLI-C1/2

Manufacturer

HAN171256

GTIN4015081677412

Connectable conductor cross-section solid1 to 25 mm²

Connectable conductor cross-section stranded1 to 25 mm²

Number of protected poles2

Trigger characteristicsC

Rated insulation voltage Ui440V

Rated switching capacity Icn according to EN 60898 at 230 V10kA

Rated switching capacity Icn according to EN 60898 at 400 V10kA

Rated voltage400V

Rated impulse withstand voltage Uimp4kV

Rated current1 A

Installation depth70.5 mm

Energy limitation class3

Explosion-proofNo

Frequency50 to 60 Hz

Switching neutral conductorNo

Number of poles (total)2

IP protection)IP20

Voltage typeAC

TE2

Ambient temperature during operation-25 to 75 °C

Degree of contamination2

Additional equipment possibleYes

Overvoltage category3
