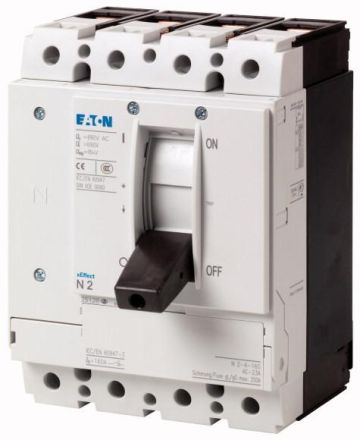

Eaton PN2-4-160-BT load disconnector, 4p, 160A terminals, 118880

Eaton PN2-4-160-BT load disconnector, 4p, 160A terminals, 118880

In stock

SKU: 225048

Price on request

€436.54

€0

Overview

Load-break switches PN..-.. also meet the isolating properties for earthed IT networks. Accessories such as bridge kits, connection terminals and door coupling rotary handles allow individual installation in a wide variety of distribution systems. PN types not suitable for remote function. Notes: Main switch properties including positive operation in accordance with IEC/EN 60204 and 0113. Disconnecting properties in accordance with IEC/EN 60947-3 and 0660. Contact protection in accordance with 0160 Part 100.

Property	Value
Number of poles:	4
Rated operational power at AC-23, 400 V:	90 kW
Rated continuous current Iu:	160 A
Max. Rated operating voltage Ue at AC:	690 V
Version as EMERGENCY STOP device:	yes
Protection class (IP), front:	IP20
Connection type main circuit:	Box terminal
Device design:	Built-in device, fixed installation technology
Design of the actuating element:	Toggle lever
Suitable for floor mounting:	yes
Integrated motor drive:	no
Suitable for front mounting 4-hole:	no
Version as Maintenance/repair switch:	yes
Voltage release optional:	no
Suitable for front mounting central:	no
Suitable for intermediate installation:	yes
Suitable for distribution board installation:	yes
Version as main switch:	yes
Version as safety switch:	no
Motor drive optional:	no
Lockable:	yes
Version as reversing switch:	no
Rated short-time withstand current Icw:	3.5 kA
Color of the actuating element:	black
Rated operating voltage:	690 V
Number of switches:	1
