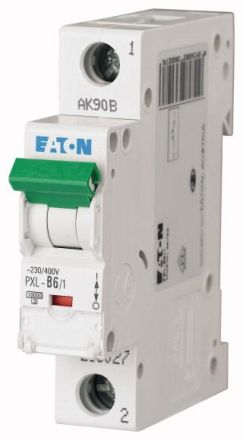

Eaton PXL-B6/1 circuit breaker, 6A, 1p, B-Char , 236027

In stock

SKU: 218539

Price on request

€5.31

€0

Overview

Miniature circuit breaker, PXL, 1-pole, tripping characteristic: B, rated current In: 6 A, rated switching capacity according to IEC/EN 60898-1: 10 kA, switching devices for residential and commercial buildings

Property	Value
Tripping characteristic:	B
Rated current:	6 A
Rated voltage:	230 V
Type of voltage:	AC
Frequency:	50 to 60 Hz
Width in pitch units:	1
Number of poles (total):	1
Energy limitation class:	3
Additional equipment possible:	yes
Overvoltage category:	3
Installation depth:	70.5 mm
Protection class (IP):	IP20
Rated switching capacity Icn according to EN 60898 at 230 V:	10 kA
Rated switching capacity Icn according to EN 60898 at 400 V:	10 kA
Pollution degree:	2
Switching neutral conductor:	no
Number of protected poles:	1
Rated insulation voltage Ui:	440 V
Rated impulse withstand voltage Uimp:	4 kV
Ambient temperature during operation:	-25 to 55 °C
Connectable conductor cross-section, stranded:	1 to 25 mm²
Connectable conductor cross-section, solid:	1 to 25 mm²
