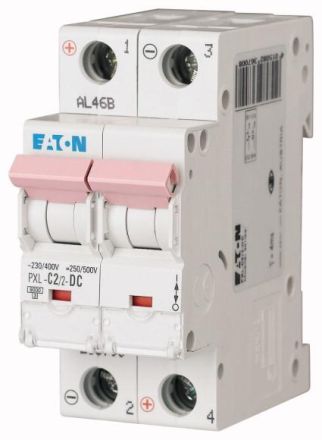

Eaton PXL-C2/2-DC circuit breaker, 2A, 2p, C-Char, DC, 236700

In stock

SKU: 218645

Price on request

€149.87

€0

Overview

Miniature circuit breaker, PXL, 2-pole, tripping characteristic: C, rated current In: 2 A, rated switching capacity according to IEC/EN 60898-1:, switching devices for residential and commercial buildings

Property	Value
Tripping characteristic:	C
Rated current:	2 A
Rated voltage:	440 V
Type of voltage:	DC
Frequency:	50 to 60 Hz
Width in pitch units:	2
Number of poles (total):	2
Energy limitation class:	3
Additional equipment possible:	yes
Overvoltage category:	3
Installation depth:	70.5 mm
Protection class (IP):	IP20
Rated switching capacity Icu according to IEC 60947-2 at 230 V:	10 kA
Rated switching capacity Icu according to IEC 60947-2 at 400 V:	10 kA
Pollution degree:	2
Switching neutral conductor:	no
Number of protected poles:	2
Rated insulation voltage Ui:	440 V
Rated impulse withstand voltage Uimp:	4 kV
Ambient temperature during operation:	-25 to 55 °C
Connectable conductor cross-section, stranded:	1 to 25 mm²
Connectable conductor cross-section, solid:	1 to 25 mm²
