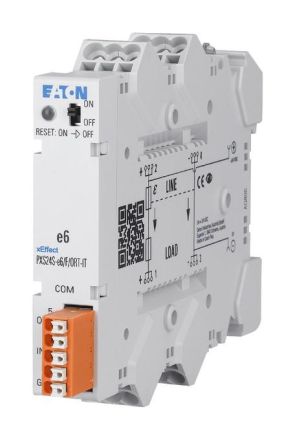

Reliable modular electronic protection for 24V DC systems with simple busbar connection, fixed or variable amperage, optionally with control input and error message output, plug-in terminals (+24V and 0V) for up to 3 loads, robust construction, locally and (optionally) remotely controllable
| Property | Value |
| Voltage type for actuation: | DC |
| Number of contacts as normally open: | 1 |
| Design of the electrical connection: | Plug connection |
| Width: | 18 mm |
| Height: | 93 mm |
| Depth: | 127 mm |
| With removable terminals: | no |
| 1-phase undercurrent possible: | no |
| 3-phase undercurrent possible: | no |
| 1-phase overcurrent possible: | no |
| 3-phase overcurrent possible: | no |
| 1-phase window possible: | no |
| 3-phase window possible: | no |
| Contains DC undercurrent function: | no |
| Contains DC overcurrent function: | yes |
| DC window function: | no |
| Current measuring range: | 0 to 13 A |
| Rated control supply voltage Us at DC: | 15 to 30 V |
| External current transformer: | no |
