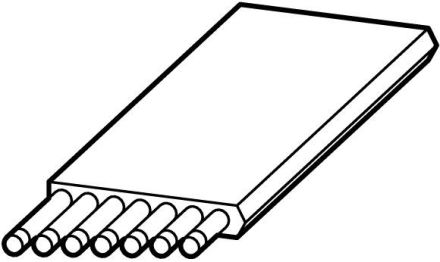

Eaton RA-C1-7X4HF 7x4qmm halogen-free flat cable, 230860

In stock
SKU: 476449
€23.26
Into a basketIn the basketGo

Overview

Flat cable for decentralized energy supply, halogen-free

PropertyValue
Number of cores:7
Conductor nominal cross-section:2.5 mm²
Sheath color:black
Conductor class:Cl.5 = fine-wire
Stranding element:no
Material of core insulation:other
Core marking:color
Shield over stranding element:without
Shield over stranding:without
Supporting element:without
Sheath material:other
Torsion protection:no
Halogen-free in accordance with EN 60754-1/2:yes
Low smoke in accordance with EN 61034-2:no
Cold-resistant in accordance with EN 60811-504+505+506:no
Oil-resistant in accordance with EN 60811-404:no
Cable width approx.:50 mm
Cable height approx.:6 mm
Permissible external cable temperature during assembly/handling:-10 to 55 °C
Permissible Cable external temperature after installation without vibration:-10 to 55 °C
Nominal voltage U0:480 V
Nominal voltage U:480 V
Nominal conductor cross-section (AWG):14 kcmil
Specification of core insulation:other
Specification of sheath material:other
Fire behavior class according to EN 13501-6:none
Smoke development class according to EN 13501-6:none
Drip behavior class according to EN 13501-6:without
Acid development class according to EN 13501-6:without

Characteristics

Sheath materialOther
Oil-resistant according to EN 60811-404No
Conductor nominal cross section2.5 mm²
HABRA-C1-7X4HF 7x4qmm halogen-free
ManufacturerEaton
HAN230860
GTIN4015082308605
Wire number7
Leader ClassKl.5 = fine-stranded
Coat colorBlack
Eaton RA-C1-7X4HF 7x4qmm halogen-free flat cable, 230860
Eaton RA-C1-7X4HF 7x4qmm halogen-free flat cable, 230860
€23.26
Into a basketIn the basketGo
