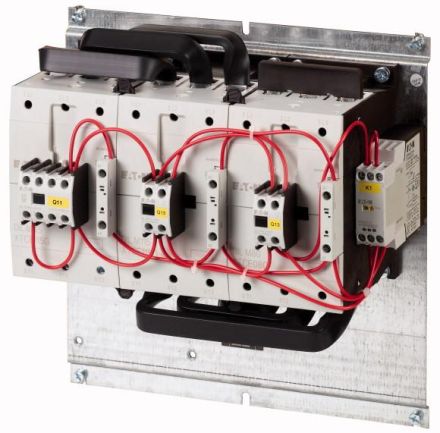

Eaton SDAINLM200 (230V50HZ,240V60HZ) 110kW/400V contactor, 101010

In stock
SKU: 475668
€2,211.48
Into a basketIn the basketGo

Overview

Star-delta contactor combination, application: contactor combinations for starting motors in star-delta, switching frequency: max. 30 starts/hour, accessories: star-delta combinations SDAINL, utilization category: AC-3: squirrel cage motors: starting, switching off during operation, rated operating current AC-3 380 V 400 V: Ie= 200 A, max. rated operating power three-phase motors 50 - 60 Hz AC-3 220 V 230 V: P= 55 kW, 380 V 400 V: P= 110 kW, 500 V: P= 132 kW, 660 V 690 V: P= 160 kW, max. switching time: 20 s, operating voltage: 230 V 50 Hz, 240 V 60 Hz, current type AC/DC: Alternating current operation, Individual components of the combination Mains contactor Q11: DILM115, + DILM150-XHI31, Delta contactor Q15: DILM115, + DILM150-XHI11 type, Star contactor Q13: DILM80, + DILM150-XHI11 type, Time relay K1: ETR4-51 type, Note: Also suitable for motors of efficiency class IE3., IE3-capable devices are marked with the logo on the packaging.

PropertyValue
Connection type main circuit:Screw connection
Voltage type for actuation:AC
Function:Star-delta contactor
Rated operating power at AC-3, 400 V:110 kW
Rated control supply voltage Us at AC 50 Hz:230 V
Rated control supply voltage Us at AC 60 Hz:240 V
Degree of protection (IP):IP00
Rated operating current Ie at AC-3, 400 V:200 A

Characteristics

HABSDAINLM200 (230V50HZ,240V60HZ) 110kW/400V
ManufacturerEaton
HAN101010
GTIN4015081009091
Connection type main circuitScrew connection
Rated operational power at AC-3, 400 V110kW
Rated operational current Ie at AC-3, 400 V200A
Rated control supply voltage Us at AC 50 Hz230V
Rated control supply voltage Us at AC 60 Hz240V
FunctionStar-delta contactor
IP protection)IP00
Voltage type for actuationAC
Eaton SDAINLM200 (230V50HZ,240V60HZ) 110kW/400V contactor, 101010
Eaton SDAINLM200 (230V50HZ,240V60HZ) 110kW/400V contactor, 101010
€2,211.48
