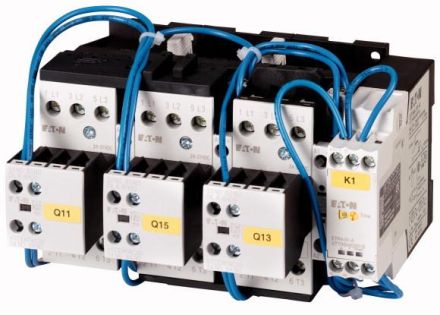

Star-delta contactor combination, application: contactor combinations for starting motors in star-delta, switching frequency: max. 30 starts/hour, accessories: star-delta combinations SDAINL, utilization category: AC-3: squirrel cage motors: starting, switching off during operation, rated operating current AC-3 380 V 400 V: Ie= 45 A, max. rated operating power three-phase motors 50 - 60 Hz AC-3 220 V 230 V: P= 11 kW, 380 V 400 V: P= 22 kW, 500 V: P= 30 kW, 660 V 690 V: P= 22 kW, max. switching time: 20 s, operating voltage: 230 V 50 Hz, 240 V 60 Hz, current type AC/DC: AC operation, individual components of the combination mains contactor Q11: DILM25-10, + DILA-XHI20, delta contactor Q15: DILM25-01, + DILA-XHI20 type, star contactor Q13: DILM17-01, + DILA-XHI20 type, time relay K1: ETR4-51 type, Note: Also suitable for motors of efficiency class IE3., IE3-capable devices are marked with the logo on the packaging.
