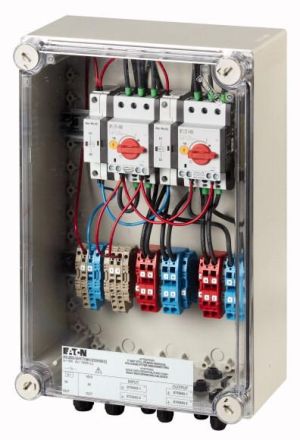

Eaton SOL30X2-SAFETY-MC4-U (230V50HZ) fire brigade switch, 168098

Eaton SOL30X2-SAFETY-MC4-U (230V50HZ) fire brigade switch, 168098

In stock

SKU: 480024

Price on request

€622.89

€0

Into a basketIn the basketGo

Overview

Firefighter switch, protection class: IP65, standards and regulations: IEC/EN 60 947-3

Property	Value
Design:	On/off switch
Number of poles:	2
Rated continuous current Iu:	30 A
Complete device in housing:	yes
With zero position:	yes
Design of the actuating element:	Rotary knob
Connection type main circuit:	Screw connection
Suitable for intermediate installation:	no
Suitable for front mounting:	no
Suitable for Distribution board installation:	no
Suitable for floor mounting:	yes
Protection class (IP), front:	IP65
Number of auxiliary contacts as normally closed contacts:	1
Number of auxiliary contacts as normally open contacts:	1
With retraction to zero position:	yes
NEMA protection class, front:	other
Housing material:	plastic

Characteristics

HABSOL30X2-SAFETY-MC4-U (230V50HZ)

Manufacturer

HAN168098

GTIN4015081646753

Connection type main circuitScrew connection

Number of auxiliary contacts as normally open1

Number of auxiliary contacts as normally closed1

VersionOn/off switch

Design of the actuating elementRotary knob

Rated continuous current Iu30A

Suitable for floor mountingYes

Suitable for front mountingNo

Suitable for distribution board installationNo

Suitable for intermediate constructionNo

Complete device in housingYes

With zero settingYes

With retraction to zero positionYes

NEMA protection class, frontOther

Number of poles2

Protection class (IP), frontIP65

Housing materialPlastic
