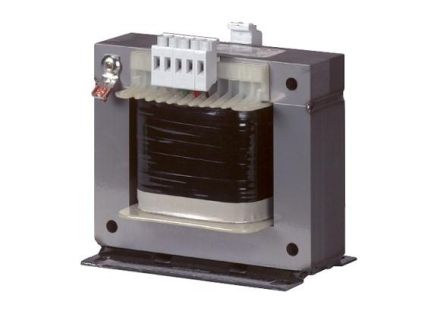

Eaton STI1,6 (400/230) 1,6kVA control transformer, 046952

In stock
SKU: 475269
€403.70
Into a basketIn the basketGo

Overview

Control transformer, range: single-phase control transformers ST., basic function: single-phase control, isolating and safety transformers STI, STZ, nominal input voltage: 400 ± 5 % V, nominal output voltage: 230 V, nominal power: 1.6 kVA, short-time power: 5.5 kVA, protection class: IP00, standards and regulations built and tested according to: IEC/EN 61558-2-2/2-4/2-6,0570 Part 2-2,0570 Part 2-6 (safety transformers),0570 Part 2-4 (isolating transformers), can be used according to: IEC/EN 60204-1, ÖVE-EN 13,0113,0100 Part 410

PropertyValue
Rated apparent power:1600 VA
Height:174 mm
Width:195 mm
Depth:142 mm
Primary voltage 1:400 V
Secondary voltage 1:230 V
Protection class (IP):IP00
Suitable for series installation:no
Short-circuit proof:no
Designed as an isolating transformer:yes
Relative short-circuit voltage uk:2.4 %
Toroidal core:no
Insulation class according to IEC 85:B
Suitable for circuit board mounting:no
Designed as a safety transformer:yes
Designed as an economy transformer:no
Conductor material:copper

Characteristics

Short circuit proofNo
Conductor materialCopper
Secondary voltage 1230 V
HABSTI1,6 (400/230) 1,6kVA
ManufacturerEaton
HAN046952
GTIN4015080469520
Width195 mm
Suitable for series installationNo
Height174 mm
IP protection)IP00
Depth142 mm
