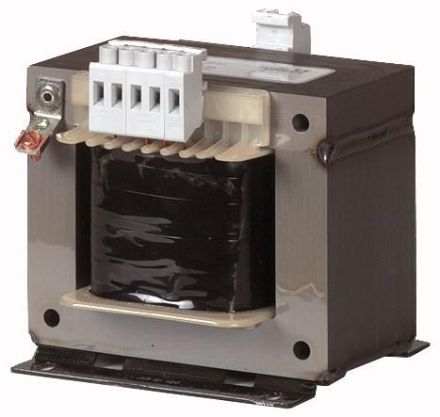

Eaton STN1,6 (400/230) 1,6kVA control transformer, 221524

In stock

SKU: 475295

Price on request

€257.83

€0

Overview

Control transformer, range: single-phase control transformers ST., basic function: single-phase control transformers STN, nominal input voltage: 400 ± 5 % V, nominal output voltage: 230 V, nominal power: 1.6 kVA, short-time power: 3.98 kVA, protection class: IP00, standards and regulations built and tested according to: IEC/EN 61558-2-2,0570 Part 2-2, usable according to: IEC/EN 60204-1, ÖVE-EN 13,0113,0100 Part 410

Property	Value
Rated apparent power:	1600 VA
Height:	157 mm
Width:	175 mm
Depth:	138 mm
Primary voltage 1:	400 V
Secondary voltage 1:	230 V
Protection class (IP):	IP00
Suitable for series installation:	no
Short-circuit proof:	no
Designed as an isolating transformer:	no
Relative short-circuit voltage uk:	2.5 %
Toroidal core:	no
Insulating material class according to IEC 85:	B
Suitable for circuit board mounting:	no
Designed as a safety transformer:	no
Designed as an economy transformer:	no
Conductor material:	copper
