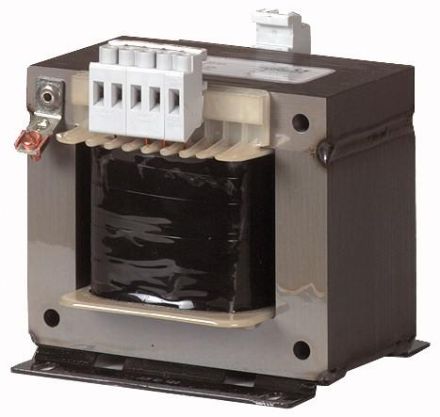

Eaton STN4,0 (400/230) 4,0kVA control transformer, 221528

In stock
SKU: 475291
€666.45
Into a basketIn the basketGo

Overview

Control transformer, range: single-phase control transformers ST., basic function: single-phase control transformers STN, nominal input voltage: 400 ± 5 % V, nominal output voltage: 230 V, nominal power: 4 kVA, short-time power: 12.2 kVA, protection class: IP00, standards and regulations built and tested according to: IEC/EN 61558-2-2,0570 Part 2-2, usable according to: IEC/EN 60204-1, ÖVE-EN 13,0113,0100 Part 410

PropertyValue
Rated apparent power:4000 VA
Height:255 mm
Width:230 mm
Depth:185 mm
Primary voltage 1:400 V
Secondary voltage 1:230 V
Protection class (IP):IP00
Suitable for series installation:no
Short-circuit proof:no
Designed as an isolating transformer:no
Relative short-circuit voltage uk:2.4 %
Toroidal core:no
Insulating material class according to IEC 85:B
Suitable for circuit board mounting:no
Designed as a safety transformer:no
Designed as an economy transformer:no
Conductor material:copper

Characteristics

Short circuit proofNo
Conductor materialCopper
Secondary voltage 1230 V
HABSTN4,0 (400/230) 4,0kVA
ManufacturerEaton
HAN221528
GTIN4015082215286
Width230 mm
Suitable for series installationNo
Height255 mm
IP protection)IP00
Depth185 mm
