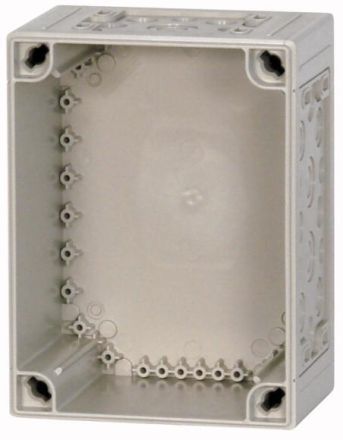

Single housing base E, material polycarbonate, impact-resistant, metric pre-punched holes in all side walls, can be broken out, cable entries at the top and bottom each = 1xM32/20 and 6xM20 and 2xM16, at the side each = 2xM32/20 and 4xM25/16 and 4xM20 and 4xM16, RAL 7035, direct mounting on the wall possible without additional accessories
| Property | Value |
| Height: | 250 mm |
| Width: | 180 mm |
| Depth: | 100 mm |
| Installation depth: | 150 mm |
| Inner depth: | 100 mm |
| Protection type (IP): | IP65 |
| Protection class: | II |
| Impact resistance: | IK10 |
| Housing material: | Plastic |
| RAL number: | 7035 |
| Mounting type: | Surface-mounted |
| Suitable for outdoor use: | yes |
| Surface: | other |
| Suitable for lightning protection: | yes |
| Mounting option: | yes |
| With mounting plate: | no |
| Number of cable entries: | 30 |
| Number of modules: | 1 |
| Number of openings for flange plates: | 4 |
| Type of cover: | optional |
| Type of Door: | without |
| Cover design: | closed |
| Width in modular units: | 9 |
| Functional integrity: | other |
| Material thickness housing: | 6 mm |
| Material thickness door/cover: | 6 mm |
| With lock: | no |
| Rated current (In): | 1600 A |
| Transparent cover/door: | no |
| Color: | gray |
| Protection class (NEMA): | other |
