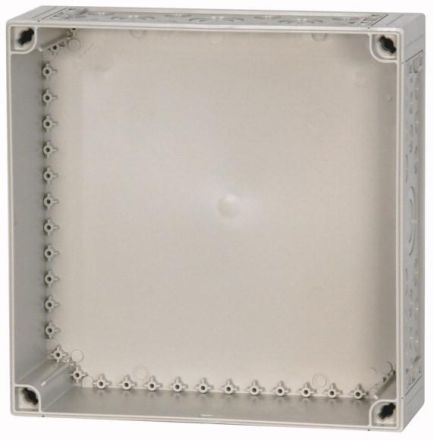

Eaton U-CI44E base housing, 069642

In stock

SKU: 474105

Price on request

€97.01

€0

Overview

Single housing base E, material polycarbonate, impact-resistant, metric pre-punched holes in all side walls, can be broken out, cable entry at the top and bottom each = 1xM50/32 and 2xM40/25 and 8xM25/16 and 2xM20, side each = 1xM63/40 and 6xM25/16 and 10xM20 and 2xM16, RAL 7035, direct mounting on the wall possible without additional accessories

Property	Value
Height:	375 mm
Width:	375 mm
Depth:	150 mm
Installation depth:	250 mm
Inner depth:	100 mm
Protection type (IP):	IP65
Protection class:	II
Impact resistance:	IK10
Housing material:	Plastic
RAL number:	7035
Mounting type:	Surface-mounted
Suitable for outdoor use:	yes
Surface:	other
Suitable for lightning protection:	yes
Mounting option:	yes
With mounting plate:	no
Number of cable entries:	100
Number of modules:	1
Number of openings for flange plates:	4
Type of cover:	optional
Type of Door:	without
Cover design:	closed
Width in modular units:	15
Functional integrity:	other
Material thickness housing:	6 mm
Material thickness door/cover:	6 mm
With lock:	no
Rated current (In):	1600 A
Transparent cover/door:	no
Color:	gray
Protection class (NEMA):	other
