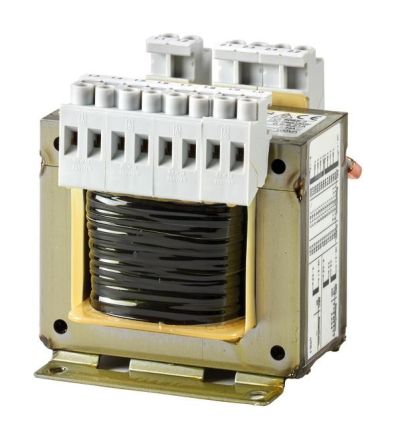

Eaton UTI0,8-24 800VA universal bearing transformer, 206935

In stock

SKU: 476287

Price on request

€221.69

€0

Overview

The UTI transformers are suitable for use in control circuits according to IEC/EN 60204 or 0113. The following values are available for the primary voltage: 208V, 230V, 380V, 400V, 415V, 440V, 460V, 480V, 500V, 525V, 550V, 575V and 600V. The following values are available for the secondary voltage: 1x115V or 2x115V.

Property	Value
Height:	132 mm
Width:	156 mm
Depth:	129 mm
Primary voltage 1:	208 to 600 V
Secondary voltage 1:	24 V
Protection class (IP):	IP00
Suitable for series installation:	yes
Short-circuit proof:	no
Designed as an isolating transformer:	yes
Relative short-circuit voltage uk:	3.2 %
Toroid core:	no
Insulation class according to IEC 85:	B
Suitable for board mounting:	no
Designed as a safety transformer:	yes
Designed as an economy transformer:	no
