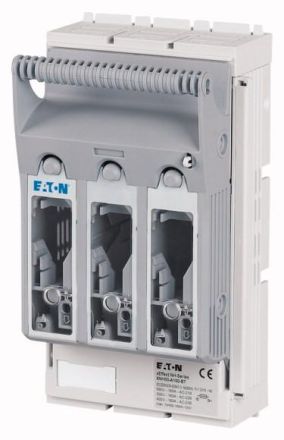

HABXNH00-A160-BT 160A 1.5-95qmm
HAN183026
GTIN4015081779536
Connection type main circuitFrame clamp
Designed as main switchNo
Designed as an EMERGENCY STOP deviceNo
Designed as a safety switchNo
Design of the actuating elementLid handle
Conditional rated short-circuit current Iq120kA
Rated continuous current Iu160A
Rated short-time withstand current Icw7kA
Suitable for floor mountingYes
Suitable for front mountingNo
Suitable for busbar constructionNo
Suitable for fuse insertsNH00
Cable entryOther
Max. rated operating voltage Ue at AC690V
With fuse monitoringNo
Equipped with connectorsNo
Motor drive integratedNo
Motor drive optionalNo
Number of poles3
Position of the actuatorIn front
Protection class (IP), frontOther
