Eaton XNH00-FCL-A160 NH disconnector, 183027

In stock

SKU: 478838

Price on request

€84.41

€0

Overview

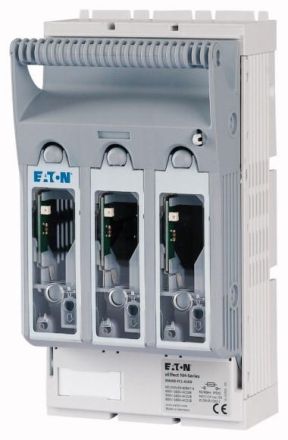

NH fuse switch disconnector 3-pole with flat connection M8 max. 95 mm², mounting plate, fuse monitoring Light, for fuse inserts NH000 optionally lockable with XNH-XLOCK and padlock

Property	Value
Rated continuous current Iu:	160 A
Protection class (IP), front:	other
Number of poles:	3
Design as main switch:	no
Design of the actuating element:	cover handle
Connection type main circuit:	screw connection
Suitable for front mounting:	no
Suitable for floor mounting:	yes
With fuse monitoring:	yes
Version as EMERGENCY STOP device:	no
Conditional rated short-circuit current Iq:	120 kA
Version as safety switch:	no
Max. Rated operating voltage Ue at AC:	690 V
Suitable for busbar construction:	no
Suitable for fuse links:	NH00
Position of the actuating element:	front
Integrated motor drive:	no
Rated short-time withstand current Icw:	7 kA
Optional motor drive:	no
Cable entry:	other
Equipped with connectors:	no
