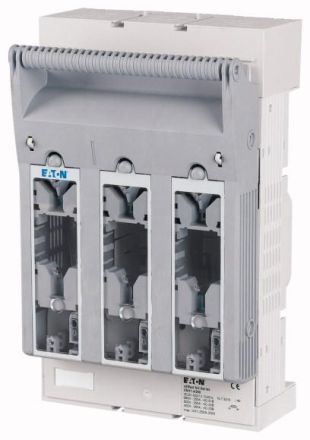

HABXNH1-A250 250A M10 max.150qmm
HAN183043
GTIN4015081779703
Connection type main circuitScrew connection
Designed as main switchNo
Designed as an EMERGENCY STOP deviceNo
Designed as a safety switchNo
Design of the actuating elementLid handle
Conditional rated short-circuit current Iq120kA
Rated continuous current Iu250A
Rated short-time withstand current Icw6kA
Suitable for floor mountingYes
Suitable for front mountingNo
Suitable for busbar constructionNo
Suitable for fuse insertsNH1
Cable entryOther
Max. rated operating voltage Ue at AC690V
With fuse monitoringNo
Equipped with connectorsNo
Motor drive integratedNo
Motor drive optionalNo
Number of poles3
Position of the actuatorIn front
Protection class (IP), frontOther
