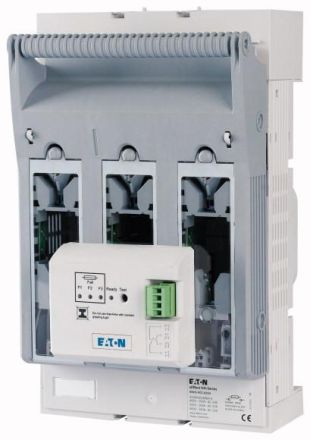

HABXNH1-FCE-A250
HAN183047
GTIN4015081779741
Connection type main circuitScrew connection
Designed as main switchNo
Designed as an EMERGENCY STOP deviceNo
Designed as a safety switchNo
Design of the actuating elementLid handle
Conditional rated short-circuit current Iq120kA
Rated continuous current Iu250A
Rated short-time withstand current Icw6kA
Suitable for floor mountingYes
Suitable for front mountingNo
Suitable for busbar constructionNo
Suitable for fuse insertsNH1
Cable entryOther
Max. rated operating voltage Ue at AC500V
With fuse monitoringYes
Equipped with connectorsYes
Motor drive integratedNo
Motor drive optionalNo
Number of poles3
Position of the actuatorIn front
Protection class (IP), frontOther
