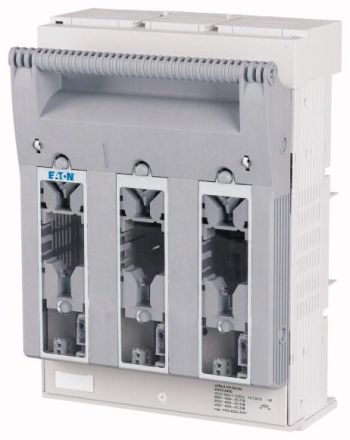

NH fuse switch disconnector 3-pole with flat connection M10 max. 240 mm², mounting plate, for fuse inserts NH2, optionally lockable with XNH-XLOCK and padlock
| Property | Value |
| Rated continuous current Iu: | 400 A |
| Protection class (IP), front: | other |
| Number of poles: | 3 |
| Design as main switch: | no |
| Design of the actuating element: | cover handle |
| Type of connection main circuit: | screw connection |
| Suitable for front mounting: | no |
| Suitable for floor mounting: | yes |
| With fuse monitoring: | no |
| Version as EMERGENCY STOP device: | no |
| Conditional rated short-circuit current Iq: | 120 kA |
| Version as safety switch: | no |
| Max. Rated operating voltage Ue at AC: | 690 V |
| Suitable for busbar construction: | no |
| Suitable for fuse links: | NH2 |
| Position of the actuating element: | front |
| Motor drive integrated: | no |
| Rated short-time withstand current Icw: | 3 kA |
| Motor drive optional: | no |
| Cable entry: | other |
| Equipped with connectors: | no |
