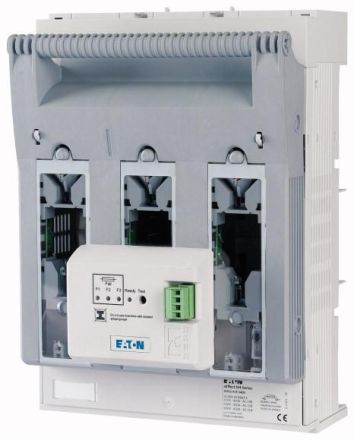

Eaton XNH2-FCE-S400-BT NH disconnector, 183070

In stock

SKU: 478992

Price on request

€636.02

€0

Overview

NH fuse switch disconnector 3-pole with box terminal 95 - 300 mm², busbar 60 mm, electronic fuse monitoring, for fuse links NH2, SmartWire ready with XNH...-SWD-KIT, cable connection top/bottom can be converted in a matter of seconds.

Property	Value
Rated continuous current Iu:	400 A
Protection class (IP), front:	other
Number of poles:	3
Design as main switch:	no
Design of the actuating element:	cover handle
Type of connection for main circuit:	box terminal
Suitable for front mounting:	no
Suitable for floor mounting:	no
With fuse monitoring:	yes
Version as EMERGENCY STOP device:	no
Conditional rated short-circuit current Iq:	120 kA
Version as safety switch:	no
Max. Rated operating voltage Ue at AC:	500 V
Suitable for busbar construction:	yes
Suitable for fuse links:	NH2
Position of the actuating element:	front
Motor drive integrated:	no
Rated short-time withstand current Icw:	3 kA
Motor drive optional:	no
Cable entry:	other
Equipped with connectors:	yes
