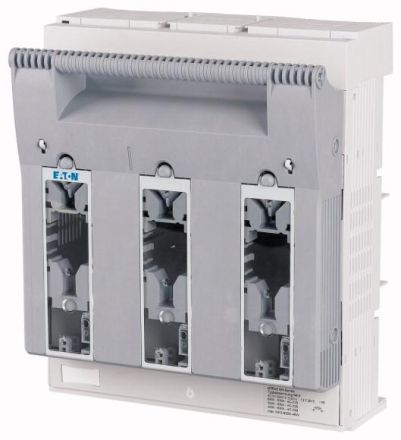

HABXNH3-S630 3P flat connector M10 collective
HAN183077
GTIN4015081780044
Connection type main circuitScrew connection
Designed as main switchNo
Designed as an EMERGENCY STOP deviceNo
Designed as a safety switchNo
Design of the actuating elementLid handle
Conditional rated short-circuit current Iq120kA
Rated continuous current Iu630A
Rated short-time withstand current Icw3kA
Suitable for floor mountingNo
Suitable for front mountingNo
Suitable for busbar constructionYes
Suitable for fuse insertsNH3
Cable entryOther
Max. rated operating voltage Ue at AC690V
With fuse monitoringNo
Equipped with connectorsNo
Motor drive integratedNo
Motor drive optionalNo
Number of poles3
Position of the actuatorIn front
Protection class (IP), frontOther
