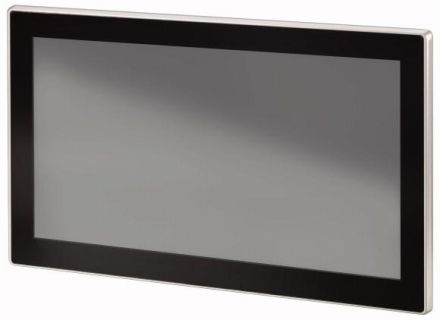

Eaton XV-303-15-C02-A00-1C 24VDC control panel, 191074

Eaton XV-303-15-C02-A00-1C 24VDC control panel, 191074

In stock

SKU: 479490

Price on request

€3,623.83

€0

Overview

Multi-touch display with PLC, XV-303, range: XV300 15.6z, function: HMI-PLC (PLC integrated), control panel with PLC, Profibus and 2nd Ethernet interface, common features of the series: Ethernet interface, CAN, USB device, USB host, RS232, RS485, slot for SD card, operating system Windows Embedded Compact 7 pro, visualization software runtime license integrated, display type: color display, TFT, anti-glare, touch technology: capacitive multitouch (PCT), number of colors: 16777216 (color depth 24 bit), resolution: WXGA, 1366 x 768 pixels, portrait projection: yes, screen diagonal: 15.6, widescreen inches, glass front in aluminum frame with aluminum die-cast housing and plastic housing, operating system: Windows Embedded Compact 7 Pro, PLC license: PLC license included, license certificates for onboard interfaces: not required, integrated interfaces: 2 x Ethernet 10/100 Mbps, 1 x RS232, 1 x RS485, 1 x CANopen®/easyNet, 1 x USB host 2.0, 1 x USB device, 1 x PROFIBUS/MPI, front design: single-pane safety glass in aluminum frame, hardened and anti-reflective, use: installation, slots: for SD card: 1, memory card automation: optionally with SD card -> item no. 181638, Pluggable communication modules (optional) : no, Touch sensor: Multifinger touchscreen, Power loss: 21.6 W, Protection class (IEC/EN 60529, EN50178, VBG 4) : IP65 (front according to EN 60529-1), IP20 (rear according to EN 60529-1), NEMA 4X, NEMA12 (according to NEMA 250-2003)

Property	Value
Supply voltage for DC:	19.2 to 30 V
Protection class (IP), front:	IP65
Usable project memory/user memory:	512000 kByte
Number of HW interfaces Industrial Ethernet:	2
Number of HW interfaces USB:	2
Number of HW interfaces serial RS-232:	1
Number of HW interfaces serial RS-485:	1
Type of supply voltage:	DC
Design of display:	TFT
Screen diagonal:	15.6 inches
With color display:	yes
With alpha keyboard:	no
With numeric keyboard:	no
Width of front:	404 mm
Height of front:	255 mm
Installation depth:	75.5 mm
Operating temperature:	0 to 50 °C
IO-Link Master:	no
Supports protocol for ASI:	no
Supports protocol for SUCONET:	no
Supports protocol for AS-Interface Safety at Work:	no
Supports protocol for Foundation Fieldbus:	no
Mounting rail mounting possible:	no
Supports protocol for Data Highway:	no
Supports protocol for other bus systems:	no
Supports protocol for PROFINET IO:	no
Supports protocol for PROFIBUS:	yes
Supports protocol for DeviceNet Safety:	no
Supports protocol for KNX:	no
Supports protocol for PROFINET CBA:	no
Wall/direct mounting possible:	no
Wireless standard WLAN 802.11:	no
Wireless standard Bluetooth:	no
Supports protocol for CAN:	yes
Supports protocol for INTERBUS-Safety:	no
Supports protocol for INTERBUS:	no
Suitable for safety functions:	no
Supports protocol for TCP/IP:	yes
Supports protocol for SERCOS:	no
Supports protocol for DeviceNet:	no
Supports protocol for SafetyBUS p:	no
Supports protocol for MODBUS:	yes
Supports protocol for PROFIsafe:	no
Supports protocol for EtherNet/IP:	yes
Number of display colors:	16777216
Number of pixels, horizontal:	1366
Number of pixels, vertical:	768
With message display:	yes
With message system (incl. Buffer and acknowledgement):	yes
Process value display (output) possible:	yes
Process value specification (input) possible:	yes
With recipes:	yes
Number of levels, password protection:	200
With printout:	yes
Number of online languages:	100
Additional software components, loadable:	yes
With SW interfaces:	yes
Supports protocol for LON:	no
Number of other HW interfaces:	1
Number of system keys:	1
Wireless standard GPRS:	no
Wireless standard GSM:	no
Wireless standard UMTS:	no
Touch technology:	capacitive multi-touch
NEMA protection class, front:	12
