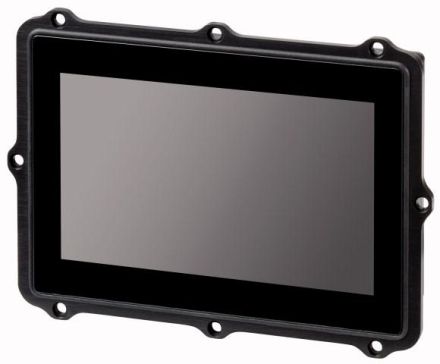

Eaton XV-313-70-B00-A00-1C HMI-PLC rear panel, 179671

Eaton XV-313-70-B00-A00-1C HMI-PLC rear panel, 179671

In stock

SKU: 478663

Price on request

€2,170.23

€0

Overview

Multi-touch display with PLC, XV-313, range: XV300 7z, function: HMI-PLC (PLC integrated), control panel with PLC for rear installation, common features of the series: Ethernet interface, CAN, USB device, USB host, RS232, RS485, slot for SD card, operating system Windows Embedded Compact 7 pro, visualization software Runtime license integrated, display type: color display, TFT, anti-glare, touch technology: capacitive multitouch (PCT), number of colors: 16777216 (color depth 24 bit), resolution: WSVGA, 1024 x 600 pixels, portrait projection: yes, screen diagonal: 7, widescreen inches, plastic housing and glass front in aluminum mounting frame, operating system: Windows Embedded Compact 7 Pro, PLC license: PLC license included, license certificates for onboard interfaces: not required, integrated interfaces: 1 x Ethernet 10/100 Mbps, 1 x RS232, 1 x RS485, 1 x USB host 2.0, 1 x USB device, 1 x CANopen®/easyNet, front design: hardened, anti-reflective glass without frame, use: for the rear section, slots: for SD card: 1, memory card automation: optional with SD card -> item no. 181638, plug-in communication modules (optional): no, touch sensor: multi-finger touchscreen, power loss: 14.4 W, protection class (IEC/EN 60529, EN50178, VBG 4): IP65 (front according to EN 60529-1), IP20 (rear according to EN 60529-1), NEMA 4X, NEMA12 (according to NEMA 250-2003)

Property	Value
Supply voltage for DC:	19.2 to 30 V
Protection class (IP), front:	IP65
Usable project memory/user memory:	512000 kByte
Number of HW interfaces Industrial Ethernet:	1
Number of HW interfaces USB:	2
Number of HW interfaces serial RS-232:	1
Number of HW interfaces serial RS-485:	1
Type of supply voltage:	DC
Design of display:	TFT
Screen diagonal:	7 inches
With color display:	yes
With alpha keyboard:	no
With numeric keyboard:	no
Width of front:	181.5 mm
Height of front:	125.6 mm
Installation depth:	50.1 mm
Operating temperature:	0 to 50 °C
IO-Link Master:	no
Supports protocol for ASI:	no
Supports protocol for SUCONET:	no
Supports protocol for AS-Interface Safety at Work:	no
Supports protocol for Foundation Fieldbus:	no
Mounting rail mounting possible:	no
Supports protocol for Data Highway:	no
Supports protocol for other bus systems:	no
Supports protocol for PROFINET IO:	no
Supports protocol for PROFIBUS:	no
Supports protocol for DeviceNet Safety:	no
Supports protocol for KNX:	no
Supports protocol for PROFINET CBA:	no
Wall/direct mounting possible:	no
Wireless standard WLAN 802.11:	no
Wireless standard Bluetooth:	no
Supports protocol for CAN:	yes
Supports protocol for INTERBUS-Safety:	no
Supports protocol for INTERBUS:	no
Suitable for safety functions:	no
Supports protocol for TCP/IP:	yes
Supports protocol for SERCOS:	no
Supports protocol for DeviceNet:	no
Supports protocol for SafetyBUS p:	no
Supports protocol for MODBUS:	yes
Supports protocol for PROFIsafe:	no
Supports protocol for EtherNet/IP:	yes
Number of display colors:	16777216
Number of pixels, horizontal:	1024
Number of pixels, vertical:	600
With message display:	yes
With message system (incl. Buffer and acknowledgement):	yes
Process value display (output) possible:	yes
Process value specification (input) possible:	yes
With recipes:	yes
Number of levels, password protection:	200
With printout:	yes
Number of online languages:	100
Additional software components, loadable:	yes
With SW interfaces:	yes
Supports protocol for LON:	no
Number of other HW interfaces:	1
Number of system keys:	1
Wireless standard GPRS:	no
Wireless standard GSM:	no
Wireless standard UMTS:	no
Touch technology:	capacitive multi-touch
NEMA protection class, front:	12
