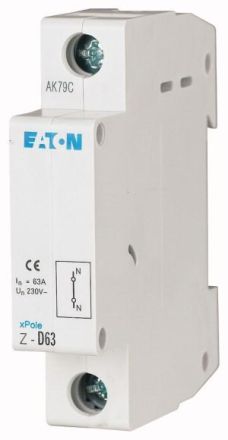

Eaton Z-D63/P feedthrough for neutral conductor, 63A, with test socket, 248268

In stock

SKU: 218969

Price on request

€9.23

€0

Overview

Feedthrough for neutral conductor, 63A, with test socket

Eaton Type: Z-D63/P
Eaton Article No.: 248268

Property	Value
QS single-wire:	1 to 25 mm²
QS fine-wire:	0 mm²
QS multi-wire:	1 to 25 mm²
Color:	grey
QS wire end ferrule:	0 mm²
Rated voltage:	230 V
Floors:	1
Terminal points per floor:	1
Rated current In:	63 A
Operating temperature:	-25 to 40 °C
Connection:	Screw connection
Design of electrical connection 2:	other
Mounting type:	DIN rail TH35
Flammability class of the insulating material according to UL94:	other
End plate required:	no
Levels bridged internally:	no
Material of the insulating body:	other
Explosion-tested design Ex e:	no
Width:	175 mm
Height:	80 mm
Depth:	80 mm
