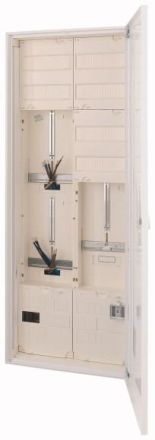

Eaton ZSD-2Z1TV-1400-A complete meter cabinet, 193717

In stock
SKU: 479866
€615.81
Into a basketIn the basketGo

Overview

Complete meter cabinet in accordance with AR-N 4101:2015-09 Two meter fields equipped with 3-point meter cross, double-deck, 10mm² Lower connection compartment with 5-pin busbar system 12x5mm, incl. connection terminals 16mm² for accommodating selective main circuit breakers up to 63 A Upper connection compartment with main line terminals 5x25mm², finger-safe TSG field, with 5-pin busbar system 12x5mm Reserve field for expansion as TSG field using assembly package Distribution field with 5 x 12 TE with 2x PEN rail in plug-in technology, covered with blind strip APZ: No Protection class: IP31 Dimensions mm: Height 1400, width 550, depth 225

PropertyValue
Number of meter spaces:2
Number of distribution rows:4
Number of fields:2
Height:1400 mm
Width:550 mm
Depth:225 mm
Protection class (IP):IP31
Design:2-storey
Lower connection compartment:with 5-pole busbar
Number of TSG places:1
Material:Steel sheet
With mounting plate:no
Mounting type:Surface-mounted
Installation width:550 mm
Installation height:1100 mm
Installation depth:225 mm

Characteristics

Number of fields2
HABZSD-2Z1TV-1400-A
ManufacturerEaton
HAN193717
GTIN9010238035782
Number of distribution rows4
Number of meter slots2
Version2-storey
Width550 mm
Installation width550 mm
Installation height1100 mm
Installation depth225 mm
Height1400 mm
With mounting plateNo
Mounting typeSurface-mounted
IP protection)IP31
Depth225 mm
Lower connection compartmentWith busbar 5-pole
MaterialSheet steel
