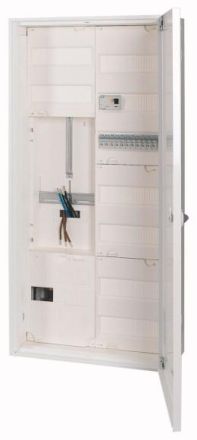

Complete meter cabinet according to AR-N 4101:2015-09, pre-wired and equipped with switching devices. Meter field equipped with 3-point meter cross, 10mm². Lower connection compartment with 5-pin. Busbar system 12x5mm, incl. 16mm² terminals for accommodating selective main circuit breakers up to 63 A Functional space for additional utility company applications covered with lockable blind strip RJ45 connection socket insulated, packed loose Upper connection space with main line terminal 5x25mm², finger-safe Distribution panel with 5 x 12 TE with 2x PEN rail in plug-in technology Distribution panel equipped with: 1 piece PXF-40/4/003-A 12 pieces PXL-B16/1, connected via phase rail EVG-3PHAS/12MODUL Circuit breaker rows covered with blind strip Wiring: 10mm² between main line terminal and FI/PEN rail Connection between FI switch and circuit breaker row APZ: Yes, installed in the distribution panel below, incl. protective hose for data line Protection class: IP31 Dimensions in mm: Height 1100, width 550, depth 225
