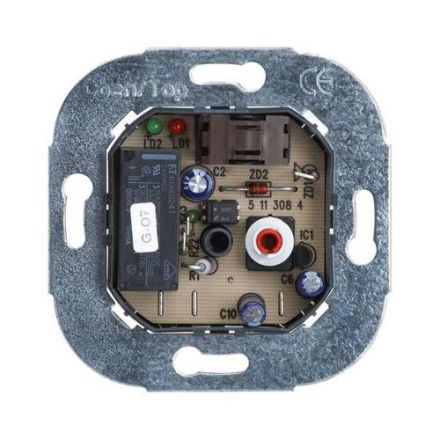

ELSO 176131 Opener 16 (2) A Remote sensor temperature controller

In stock

SKU: 433780

Price on request

€119.17

€0

Overview

Temperature controller with remote sensor 4m 230V AC, 50Hz, 16 (2) A cos 1, temperature range 10-50°C, suitable for electric. Underfloor heating, opener with ON/OFF switch, connection for night-time reduction approx. 5 K, 2 LEDs for displaying night-time reduction or heating

Property	Value
Color:	other
Version:	On/Off
Mounting type:	Flush-mounted
Protection class (IP) :	IP30
Height:	70 mm
Width:	70 mm
Depth:	42 mm
Type of power supply:	230 V AC
Connection:	three-/four-wire
With receiver:	no
Measuring range lower value:	5 °C
Measuring range upper value:	30 °C
Sensor external:	no
Thermal feedback:	parallel
Control characteristics:	other
Heating:	yes
Number of heating outputs:	1
Cooling:	no
Difference value:	0.5 K
Difference adjustable:	no
Temperature readable:	no
With noise level display:	no
Sensor design:	Bimetal
With display:	no
Operation:	Rotary
With drinking water circuit:	no
Contact type:	Changeover contact
Max. voltage of the contacts:	230 V
Max. Contact load:	16 A
Protection class (NEMA) :	1
Explosion-proof:	no
Diameter:	57 mm
Class of temperature controller:	I
